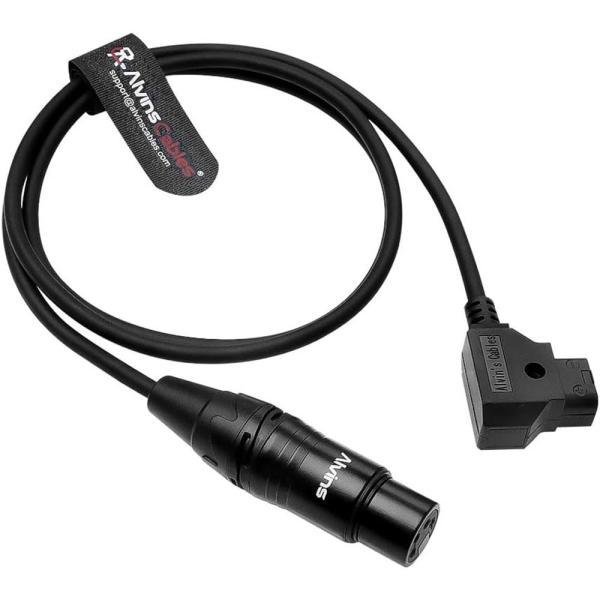

Alvin's Cables D-Tap to XLR 4-Pin Power Cable

Core Specifications:

1. Device Compatibility:

   • Cinema Cameras:
     • Sony Venice / F55 / SXS series
   • On-Camera Monitors:
     • TVlogic LVM-170A
     • SmallHD 1303
   • Lighting Systems: Practilite 602

2. Power Conversion:

   • Input: D-Tap (Power Tap) male connector (industry-standard 12V/3A output).
   • Output: XLR 4-Pin male connector (for professional camera/monitor power input).

3. Connector Design:

   • Plug A: XLR 4-Pin Female (device interface).
   • Plug B: D-Tap Male (source interface).

4. Cable Configuration:

   • Standard Length: 1M (39 in).
   • Customization: Other lengths available (contact before ordering).

5. Quality Assurance:

   • Pre-shipment tested for shorts/defects.
   • Defective units replaced immediately.

Critical Technical Notes:

⚠️ Connection Direction:

• Power Flow: D-Tap (Plug B) → XLR 4-Pin (Plug A).
• Voltage Compatibility: Requires 12V D-Tap source (common in V-mount/Gold-mount batteries).

⚠️ XLR Pinout Safety:
Ensures correct polarity (+12V/GND alignment) to prevent reverse-voltage damage.
