    Coaxial 12 Pin Hirose Male To Female Cable Analog Camera Cable High Flex

    Ask Lasest Price
    Brand Name : Alvin's Cables
    Model Number : HR10A-10R-12S(73) / HR10A-10R-12P(73)
    Price : Please contact us
    Payment Terms : T/T, Western Union, Paypal
    Supply Ability : 10000pcs/month
    Delivery Time : 1-3 business days
    • Product Details
    • Company Profile

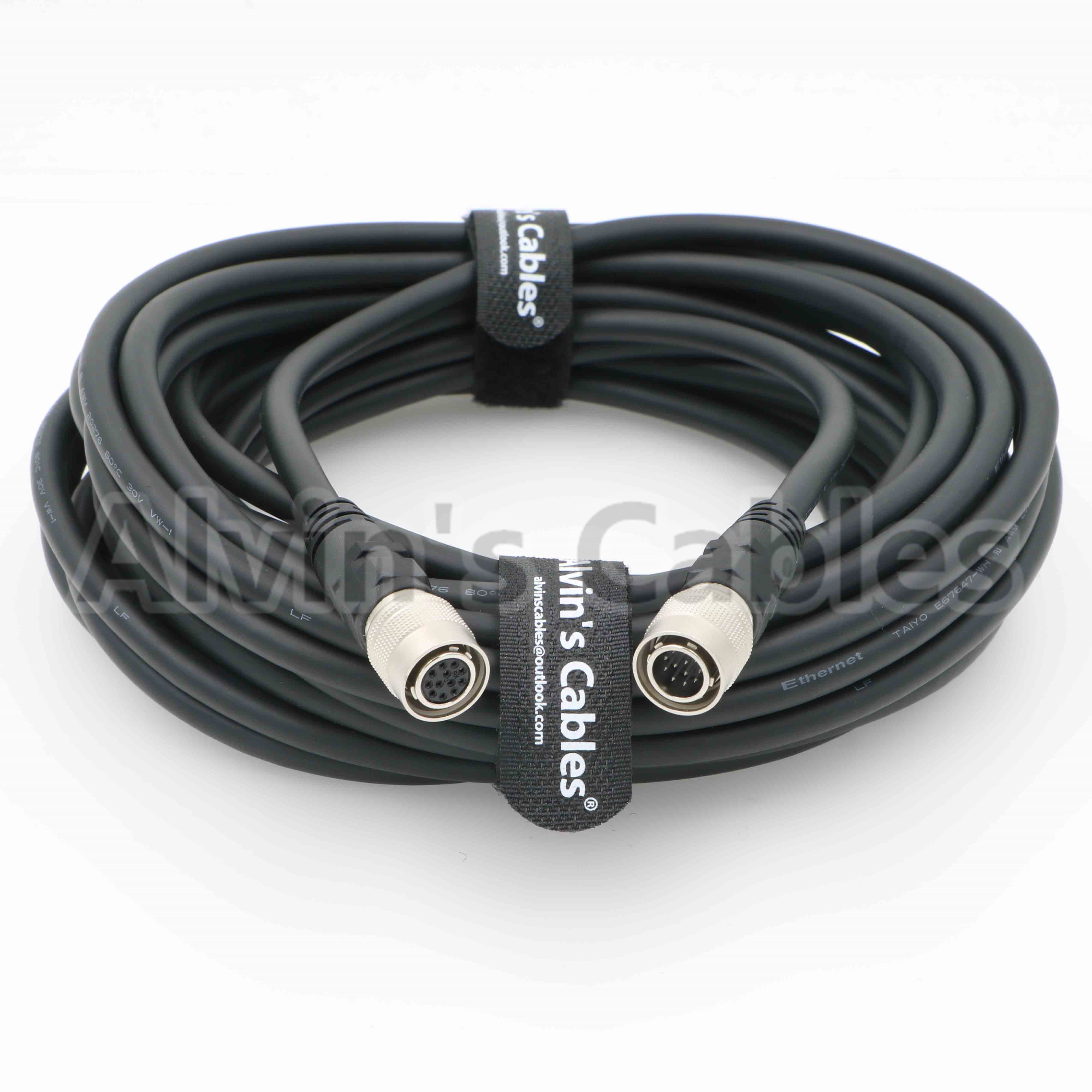

    Coaxial 12 Pin Hirose Male To Female Cable Analog Camera Cable High Flex

    Coaxial 12Pin Hirose Male to Female Hirose Cable for Computer Network Sony Camera


    This is a 1~10 Meters 12-pin female to 12-pin male interconnect cable. Designed to fit all standard 12-pin auxiliary connectors on Hitachi and Sony Cameras, as well as most other industry standard cameras that use a 12-pin connection.

    • Supports Sony industrial camera XC-ST series interface

    • CHAIN FLEX/HIGH FLEX CABLE ATTIBUTION. Designed for high-performance vision applications

    • Full shielded

    • All connector Over Molded PVC

    • Entire cable bundle shielded with foil and Coaxial for signal protection

    • Right angle type available

    • Straight connection and Right angle available

    • CCXC 12PIN SERIES CABLE AND I/O CABLE AVAILABLE

    • FLEX test term: Locomotive track Flex Radius Flex Speed

    Our product hvae high performance, and we accept small orders. Warranty time is 1 year. Any problems in warranty time, we will fix it for free but the shipping cost will be on customers.

    Brand Name

    Alvin's Cables®

    Model Number

    HR10A-10R-12S(73) / HR10A-10R-12P(73)

    Plase of Original

    Guangdong, China (Mainland)

    Application

    Industrial Camera

    Compatible Brand

    For Sony, For Hitachi

    Compatible Series

    For Sony CCXC-12P10N,Hitachi Cable no. C102-KSM

    Shell Material

    Polyester Elastomer

    Shell Construction

    Pre mold in Poly Ethelene wrapped 360
    degrees with copper tape terminated to shield,
    overmolded in black PVC.

    Cable construction

    12 coaxial 24AWG*12C+DRAIN+AL/MALOR OD:6.5MM BLACK PVC JACKET UL2464
    100%OPEN,SHORT&MISWIRE TEST
    The CCXC-12P02N Interconnect cable is a segment of interconnect cable designed for use with XC series cameras. This 2 metre (6.5 feet) cable features (12) pins. It connects the XC camera to a DC-700/700CE camera adaptor or JB-77 junction box.

    Voltage Rating

    DC 300V 0.08sec

    Insulation Resistance

    20 Mohm MIN

    Contact Resistance

    3ohm Max

    Temperature Rating

    - 40 to +80 Celsius degree


    Application

    Indutrial Camera

    Video camera cable for XC-ST70/70CE, XC-ST50/50CE, and XC-ST30/30CE.
    12PIN I/O CABLE FOR DALSA,BASLER,COGNEX,CORECO,ADIMEC,EURESYS,JAI,IMPMEX,
    MATROX,DTA,
    PULNIX,EVISION,PLEORA,TOSHIBA TELI,NATIONALINSTRUMENT,REDLAKE,UNIQ,IDT,DVC,SILICONIMAGING,OMRON,PELCO,
    SENTECH,EPIX……

    Imaging frame grabber

    12PIN I/O Camera cable for CORECO,EPIX,EURESYS,FORESIGHT,MATROX,EVISION,NATIONAL INSTRUMENT……

    Machine vision

    For all 12PIN HR10A-10P-12S(73) /HR10A-10P-12P(73)standard interface

    Equipment Systems

    Automatic Optical Inspection system(AOI), Mould monitor, Robot device,Machine Arms,Medical Equipment,Factory Equipment……


    Products Show




    Return

    • If you are not happy with your purchase, please contact us within 30 days to arrange for an exchange or refund

    • Please contact us before you return it (Please do not open return request directly, we will try our best to solve your problems, thanks)
